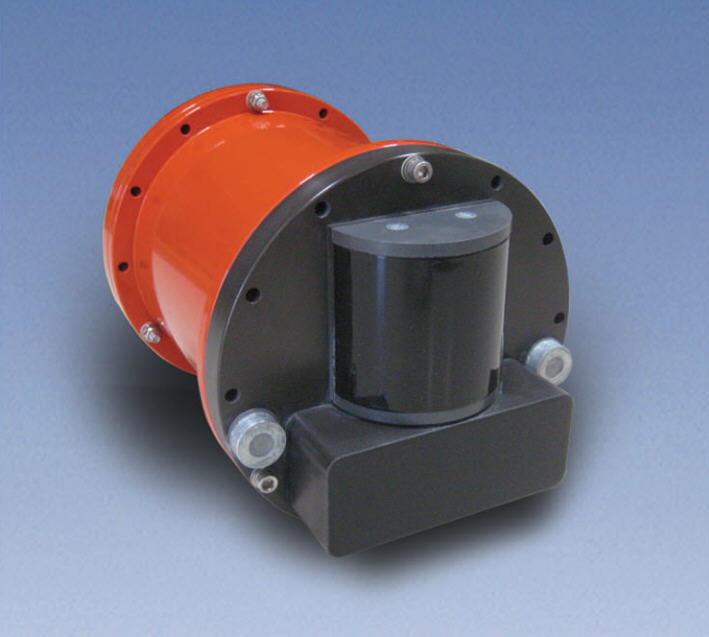

EchoSweep 300 Multibeam Echosounder


LinkQuest's EchoSweep 300 Multibeam Echosounder is a high-resolution, highly robust and cost-effective swath bathymetric system for mapping of sea floor, inland waterways and reservoirs. The EchoSweep systems are useful tools for hydrographic and bathymetric surveys, underwater inspections, dredging, pipeline inspection, cable-laying, and many other underwater applications.

The EchoSweep 300 Multibeam Echosounder maps the seafloor accurately by a sweep of very narrow acoustic beams. It can map the seafloor faster and in more detail than a single-beam echosounder, reducing userís survey time and cost significantly.

  • Range: up to 280 meters
  • Number of Beams: 140
  • 260 kHz Operating Frequency
  • 140į Swath Coverage
  • Direct Ethernet Connection from the in-water EchoSweep System to Userís Own Computer. No Deck Unit or Rack-mounted Hardware.
  • Free Windows software for real-time display, post-processing and offline analysis.

Download EchoSweep 300 Data Sheet in PDF Format
